NEW T100 Dual Column Lift Motorised Height Adjustable Mobile Cart

2024 Model: T100

Fits Most 60"-120" Flat Panel LED, LCD TV

This unique NEW model T100 Dual Column Lift version is a fresh redesign of the popular TW-100 model that has been the go-to Mobile Stand for large and heavy TVs and touch panels for over 8 years.

The T100 is looking even better now with both dual motors and the power supply module located inside the columns. The all new T100 incorporates new cable management underneath to keep all the wiring secure, and out of the way, and a design making on-site assembly even easier and faster.

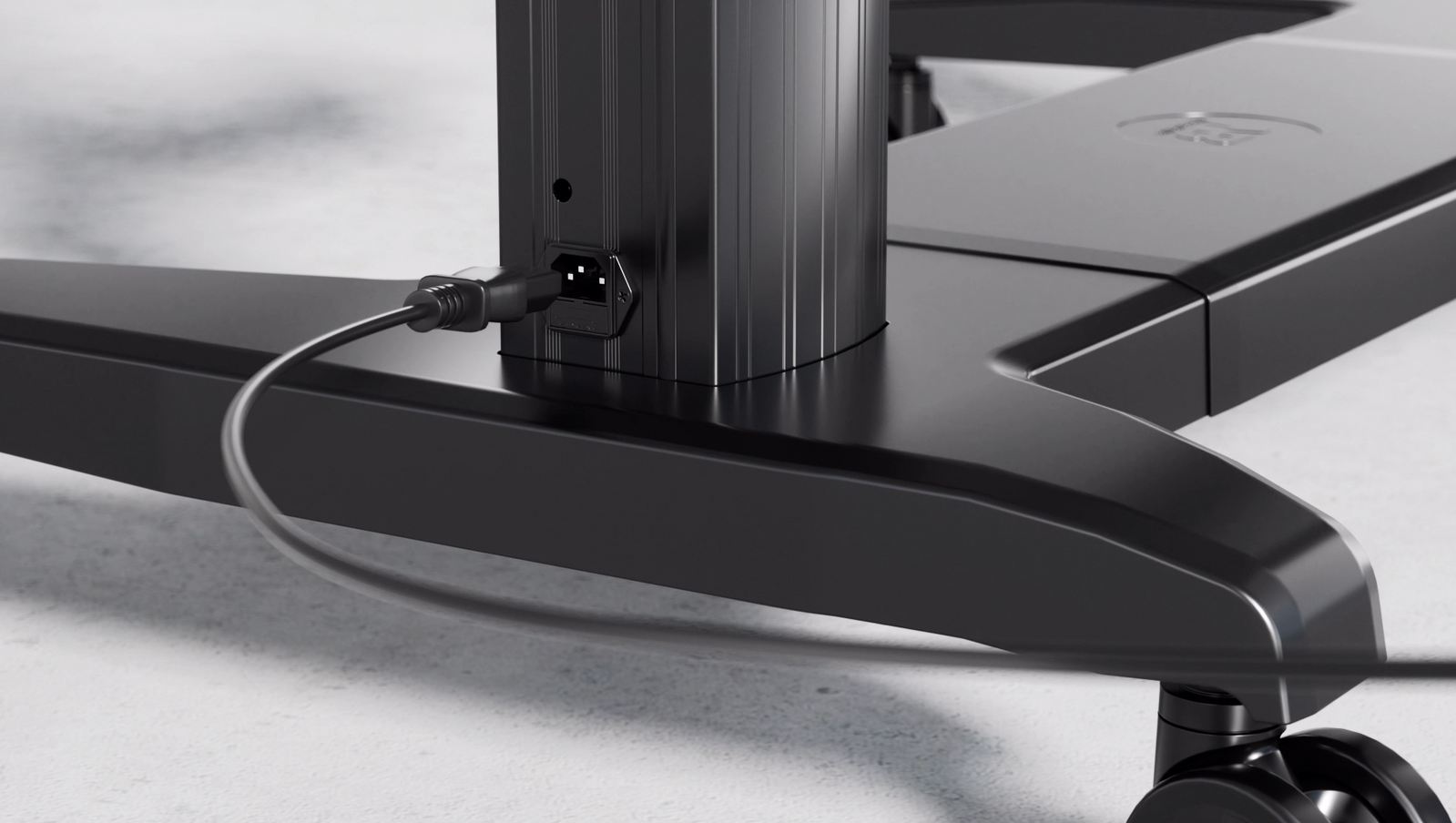

Another great inclusion in the new T100 is pass-through 240V power to the top of the column, which allows you to power the screen directly with no more power cables having to dangle from the TV. To help with relocating the stand and the screen it holds, there are two large handles built into the back of the columns making guiding the combined stand and screen even more simple secure.

The actuator columns are wider, as is the base, to increase stability, allowing this new T100 model to support screens up to 136kg in weight and a massive 120” in size. While they were redesigning the columns, they also added lighting strips down the sides for an ultra-modern look in your board room or presentation space.

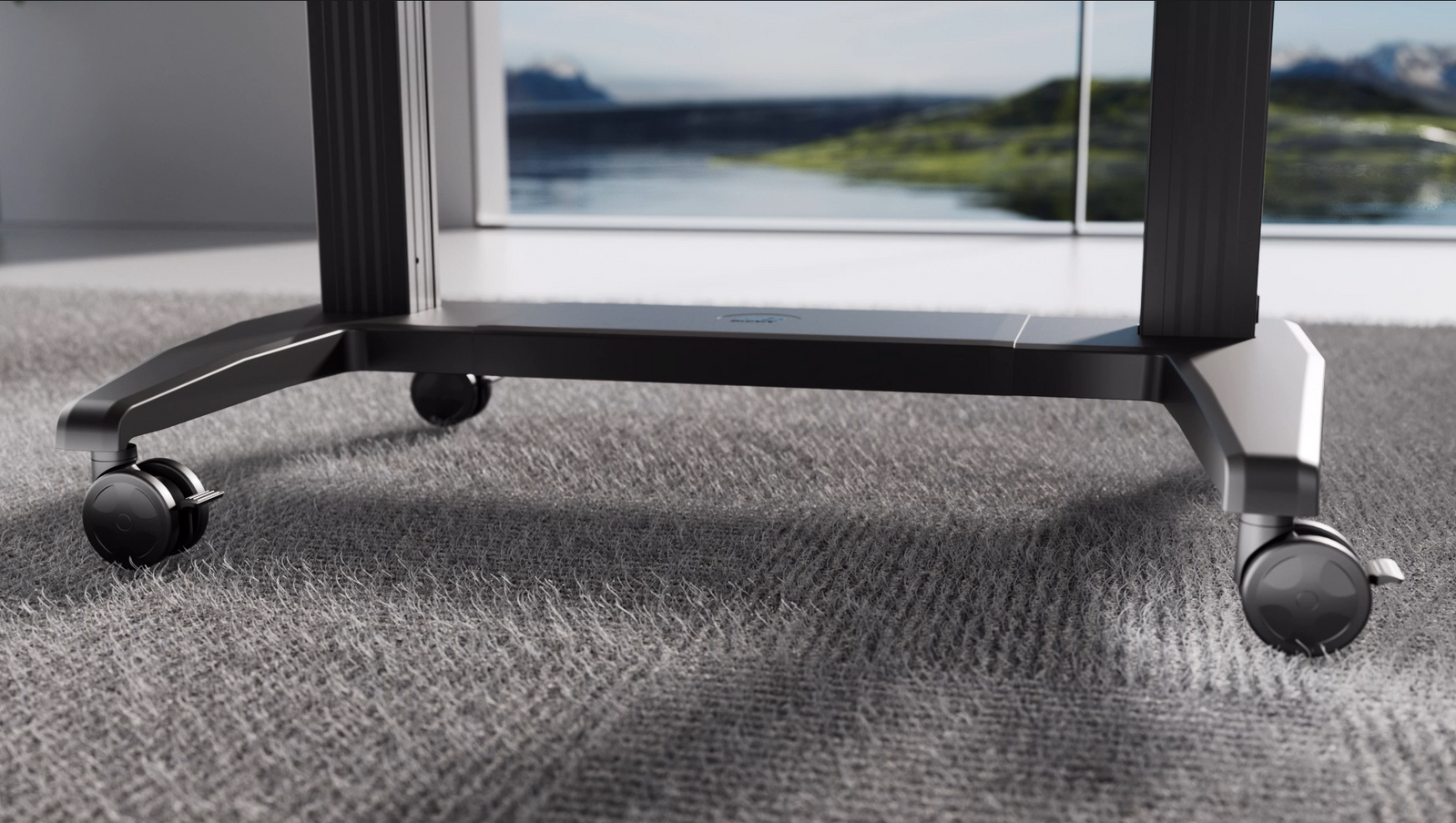

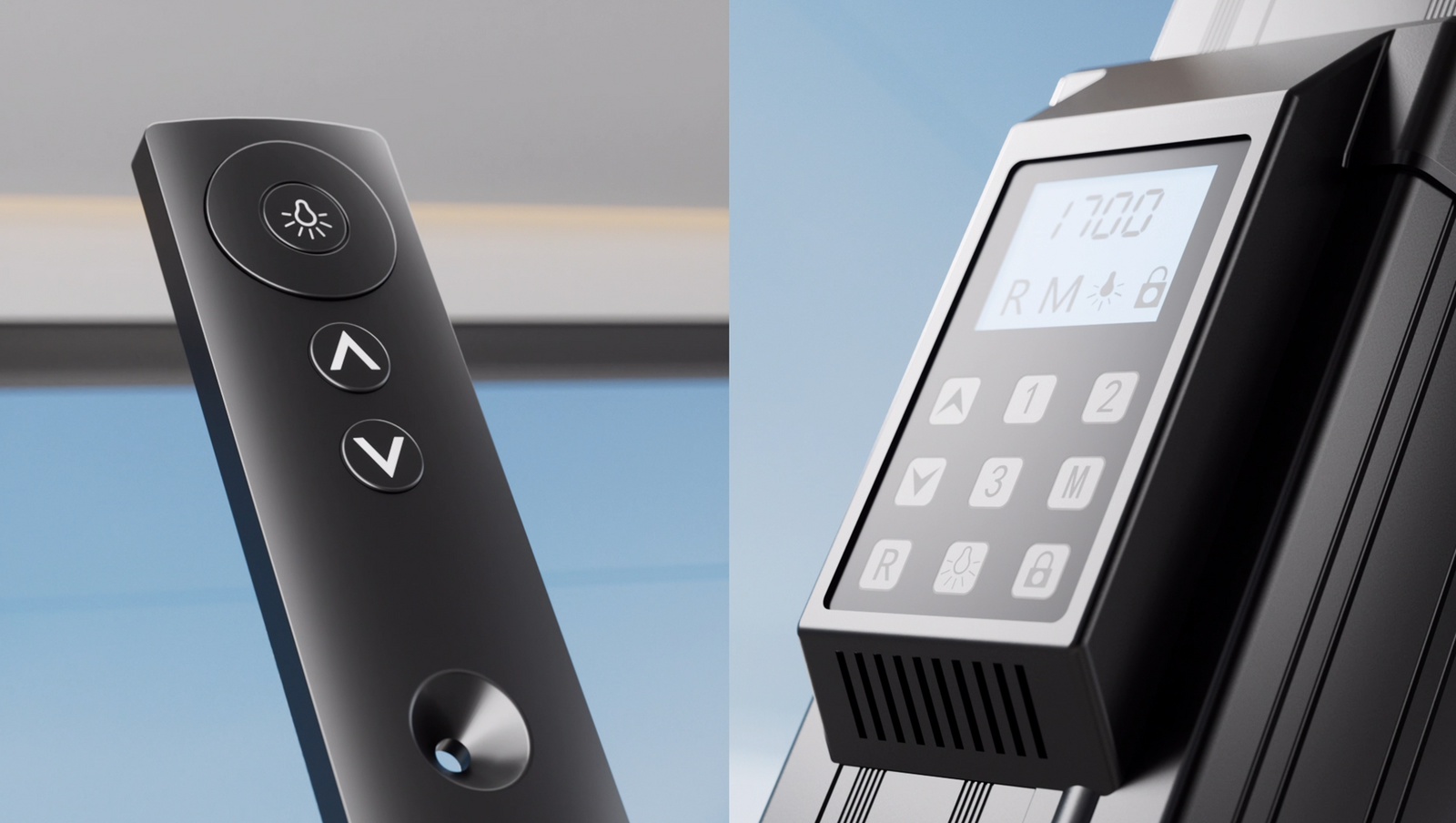

Even the remote control has been redesigned with secure battery storage and a more corporate look and feel with toggle control for the column lighting included. Learning from many years in the field, the wheels were also given an upgrade with dual disc wheels from the medical industry products to provide enhanced strength and solid locking features.

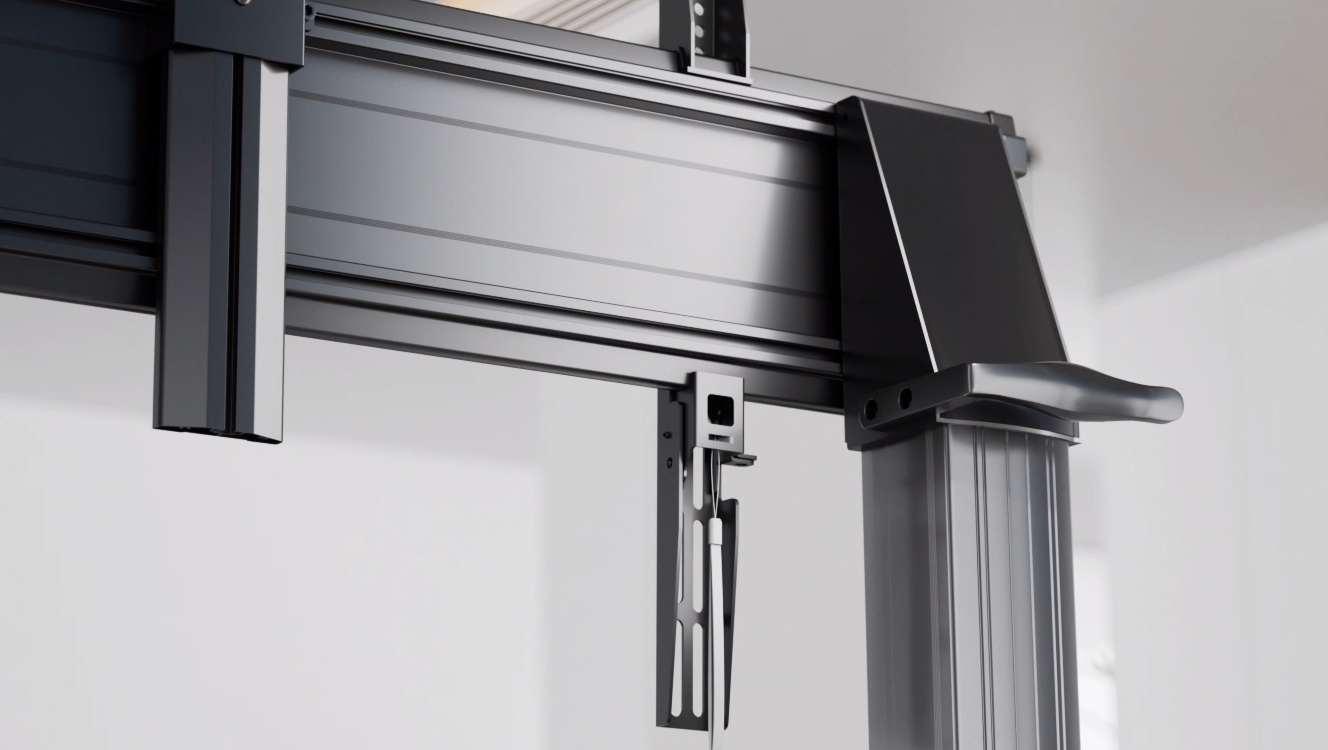

Another small but important upgrade is the screen brackets, which now include spring loaded locking clips so that as soon as you hand the screen, these prevent it from moving while locking screws are installed.

VESA support for mounting patterns up to 1000 x 600 means that virtually all of today’s huge screens will be supported and now the video conference camera mount can be installed to support the camera above or below the screen to provide a lower POV installation.

These many years of experience as well as customer feedback has produced the NEW T100 model – ready to be the centrepiece of presentation spaces everywhere.

Features

Designed for 60"-120" flat panel TVs
Weight capacity : 300lbs(136.4kgs)
VESA compliance : 200*200mm, 300*300mm, 400*200mm
  400*300mm, 400*400mm, 600*400mm, 800*400mm, 800*600mm, 1000*600mm
TV Height adjustment: from 48" (1200mm) to 68" (1700mm).
Electric lift, Color: Black.

Pass through 240v outlet in the top of the column

100mm dual disc Wheels

* Motorised height adjustment.
* Smooth rolling braked castors for effortless positioning (2 braked casters)
* High tensile strength steel and rigid aluminium alloy materials.
* Integrated cable management through columns.
* Carry maximum load 300lbs(136.4kgs) and up to 100” flat panel TV (60” to 100”)
* VESA standard from 200 x 200 to 1000 x 600. Fits most large screens in current market.
* Flexible and installer-friendly. Easy and convenient.
* Perfect space saver.

Specifications.

TW100
■ Designed for 60"-100" flat panel TV
■ Weight capacity: 300lbs(136.4kgs)
■ Tilt angle: 0°
■ VESA compliance: 200*200mm, 300*300mm, 400*200mm
   400*300mm, 400*400mm, 600*400mm, 800*400mm, 800*600mm, 1000*600mm
■ TV Height adjustment: 1230mm to 1723mm.
■ Colour: Black or White Powder Coated.

SKU T100
Barcode # 6943223113703
Brand North Bayou
Shipping Weight 44.0000kg
Shipping Width 0.710m
Shipping Height 0.210m
Shipping Length 1.280m
Shipping Cubic 0.190848000m3
