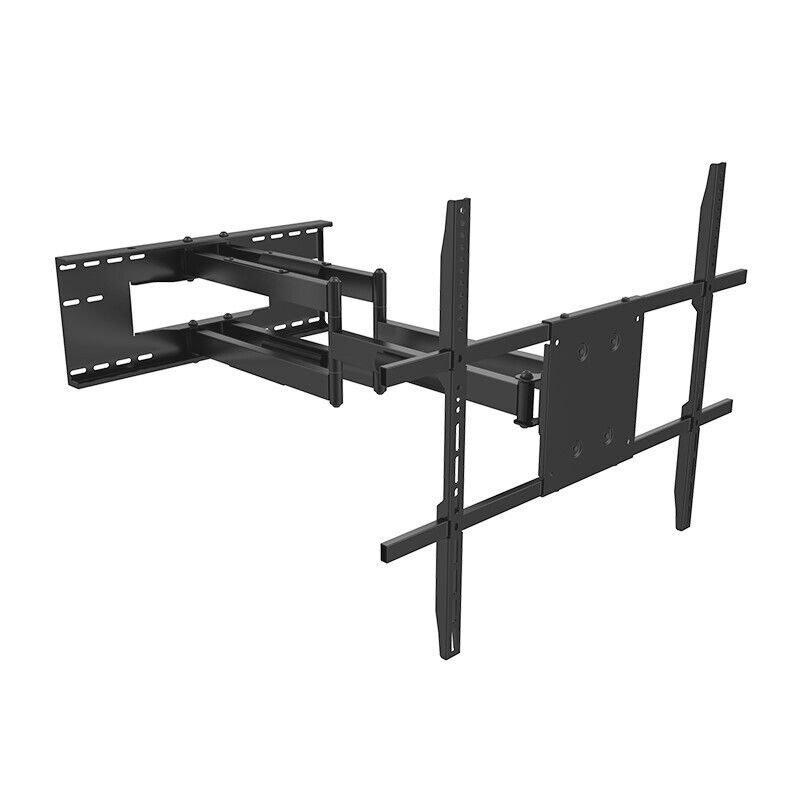

MTC-502XL Heavy Duty Cantilever Wall Mount

The new Heavy Duty MTC-502XL Cantilever TV Mount is a new heavy duty model with 620mm wide mounting wall plate holes designed for Australian consumers who want to easily mount their large TVs on a wood stud wall in their home. The dual arm design adds strength and stability to the unit. The unit features a stylish, high quality powder coated finish for quick mounting of LCD/LED displays to wall plates. The wall plate cover and cable integration system ensures a clean look. With this full-motion TV mount, you can easily tilt, extend and rotate the screen for the best viewing angle in any situation.

This versatile design holds your flat panel TV close to the wall, protruding only 108 millimeters, but still allowing for pan and tilt adjustments and screen rotation.

This advanced design makes getting the right viewing angle simple and convenient. The cable management system makes connecting your cables simple and straightforward. Standard accessories allow you to extend the VESA TV mounting holes from 200 x 200, 800 x 400 mm. The arm can be extended to a maximum of 785 mm.

Specification:

Fits screen sizes from 40 inches - 90 inches (guide)

VESA 200 x 200 to 800 x 400

Tilt range -5° to +15°, 180° rotation

Horizontal adjustment +/- 6°

Concealed cable management

Load capacity: 90kg

660 mm wall plate and 785 mm extension cable
