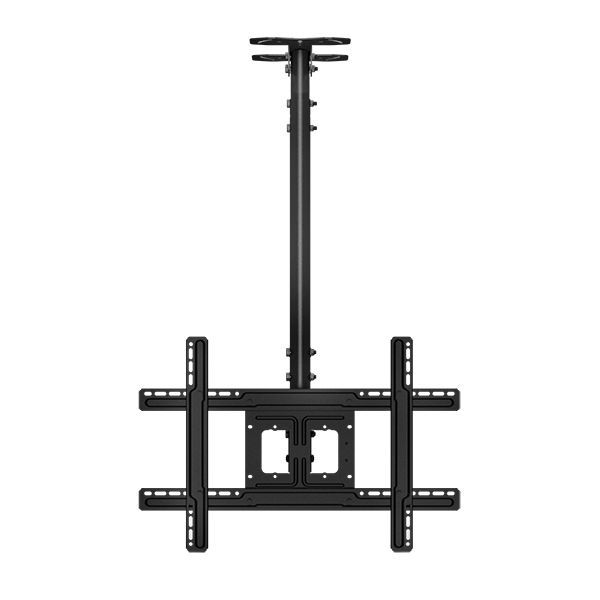

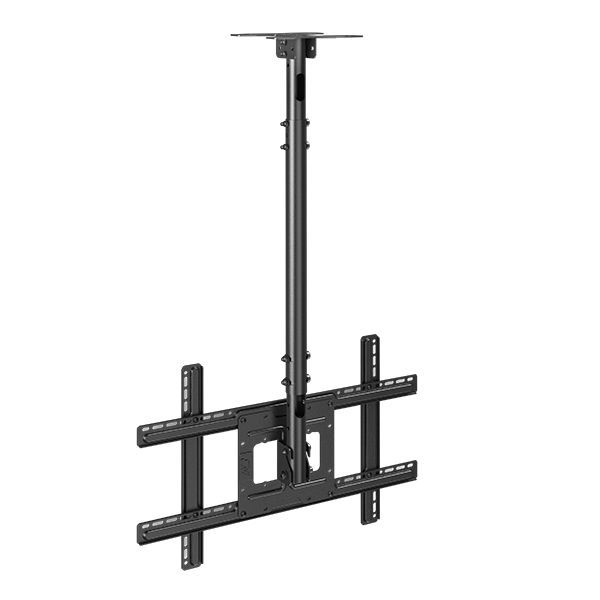

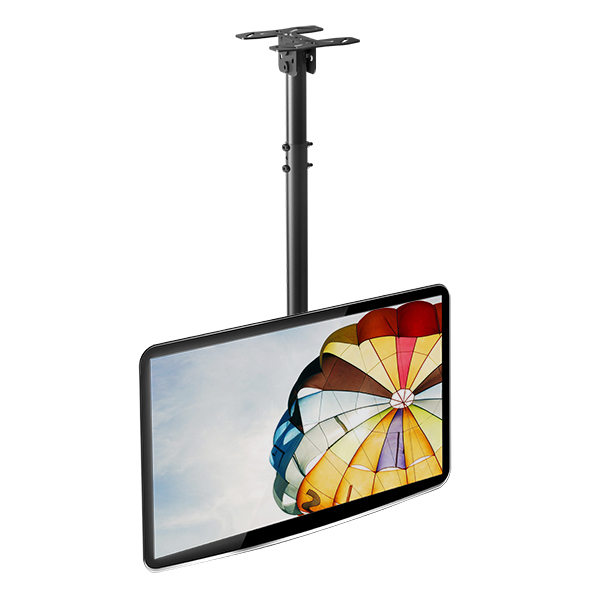

Model: NBT560-15
Fits Most 32-57'' Flat Panel LED, LCD TVs.

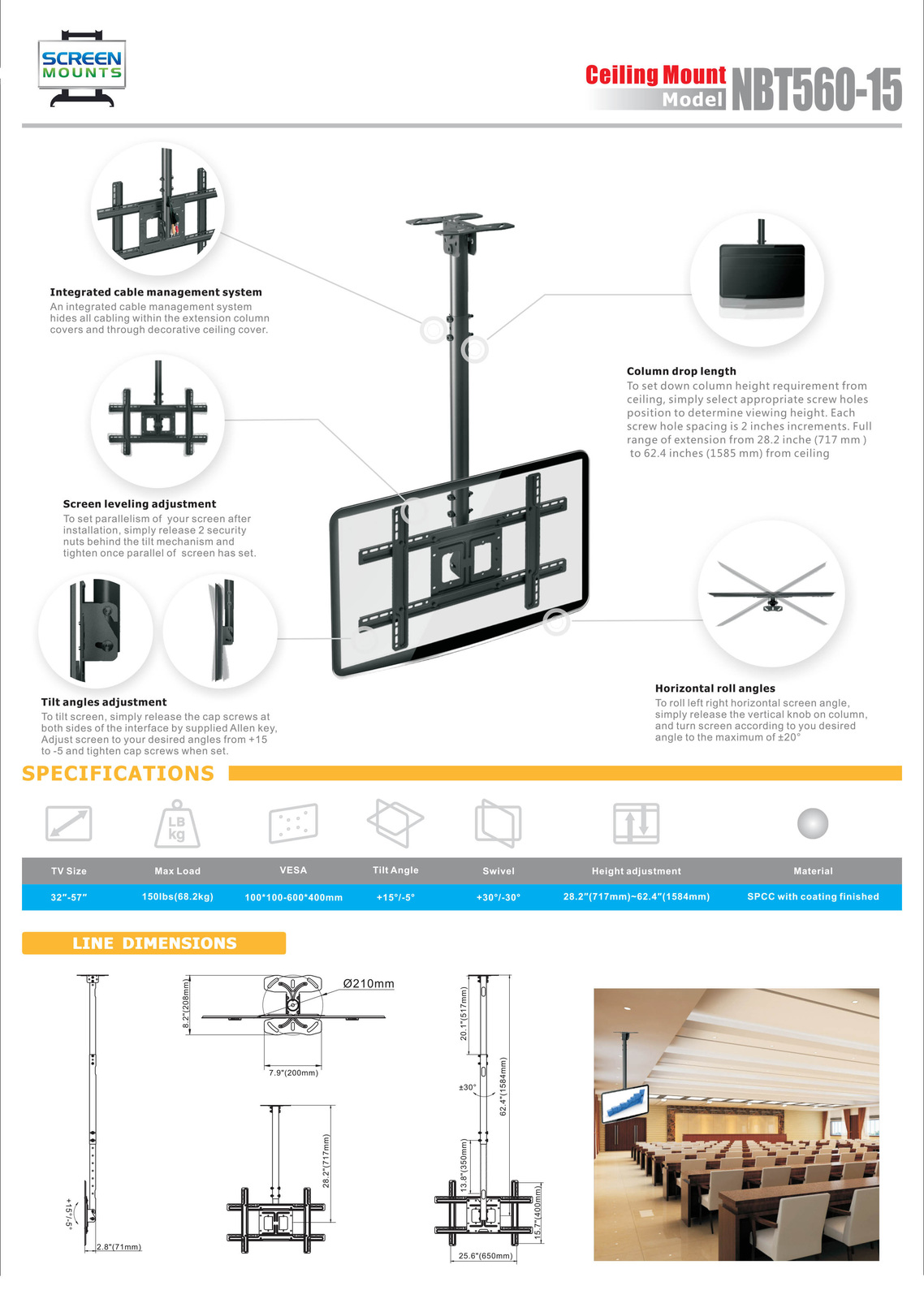

The NBT560-15 is a height adjustable professional TV ceiling mount designed to fit most flat panel TVs from 32'' to 57’’, with the ability to mount up and down freely as required with a full range of extension from 1505mm ( 59.3'') to 725mm (28.5’').
With this advanced design, screen level adjustments are easy. Simply release 2 security nuts behind the tilt mechanism and tighten once in the desired position. The NBT560-15 will hold TVs weighing up to 68.2kg and offers extension, tilt and swivel capabilities to provide you with a wide range of viewing positions. The standard Accessories enable you to extend the VESA mounting distance from 100*100mm to 600*400mm. This unit also offers an integrated cable management system for a clean, neat installation.



  • Advanced technology makes adjusting the viewing angle quick and convenient.
  • The column contains an integrated cable management system for a clean, neat installation.
  • Adjust the mount up and down freely from 28.5”(725mm) to 59.3”(1505mm).
  • The heavy gauge steel construction provides a capacity of up to 150lbs (68.2kg).
Please Note: Screen shown in images is for reference only and is not included with the product.
SKU NBT560-15
Barcode # 6943223100819
Brand North Bayou
Shipping Weight 5.0000kg
Shipping Width 0.250m
Shipping Height 0.070m
Shipping Length 0.720m
Shipping Cubic 0.012600000m3
Unit Of Measure ea
