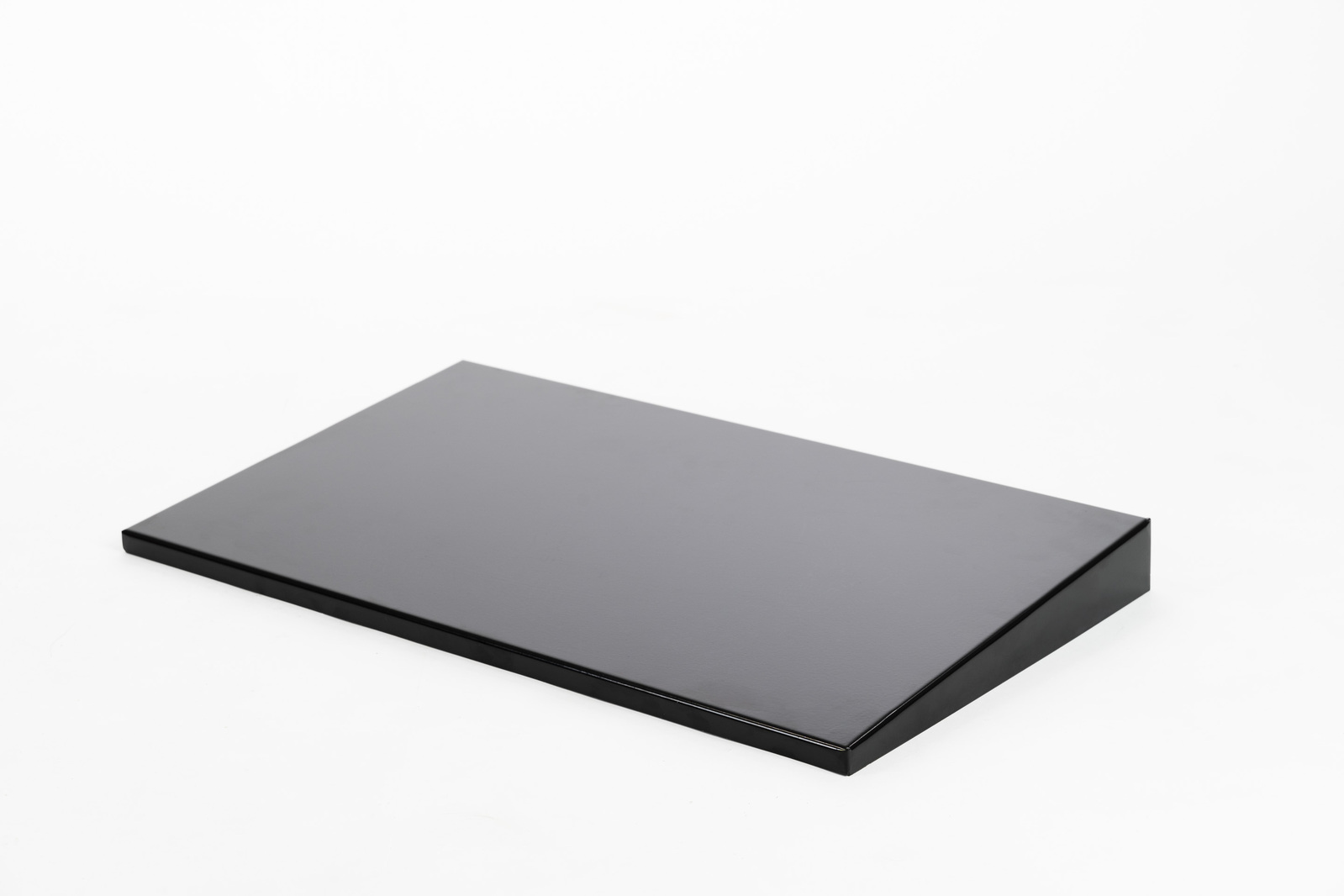

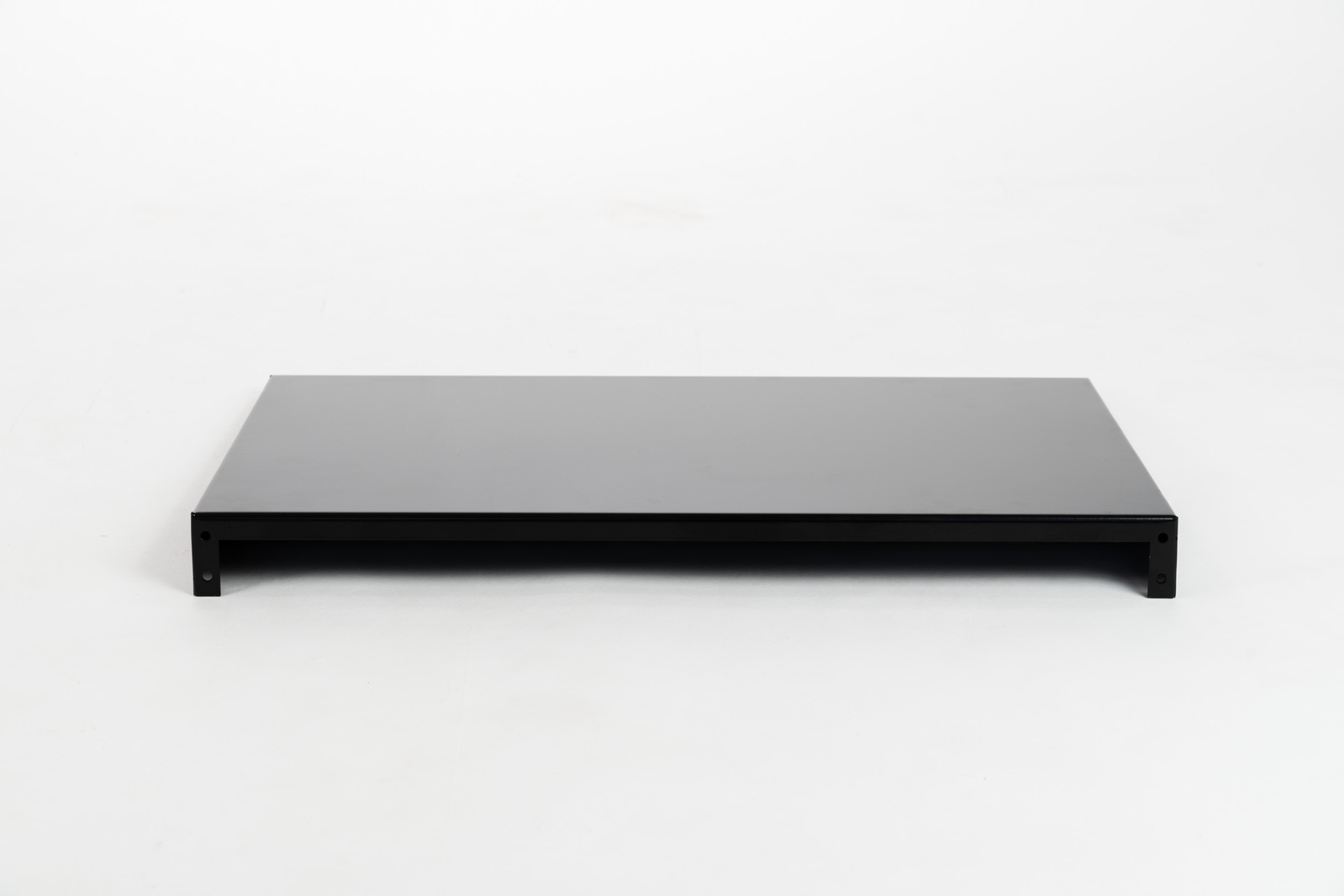

TW-100 - Shelf Kit Install Instructions

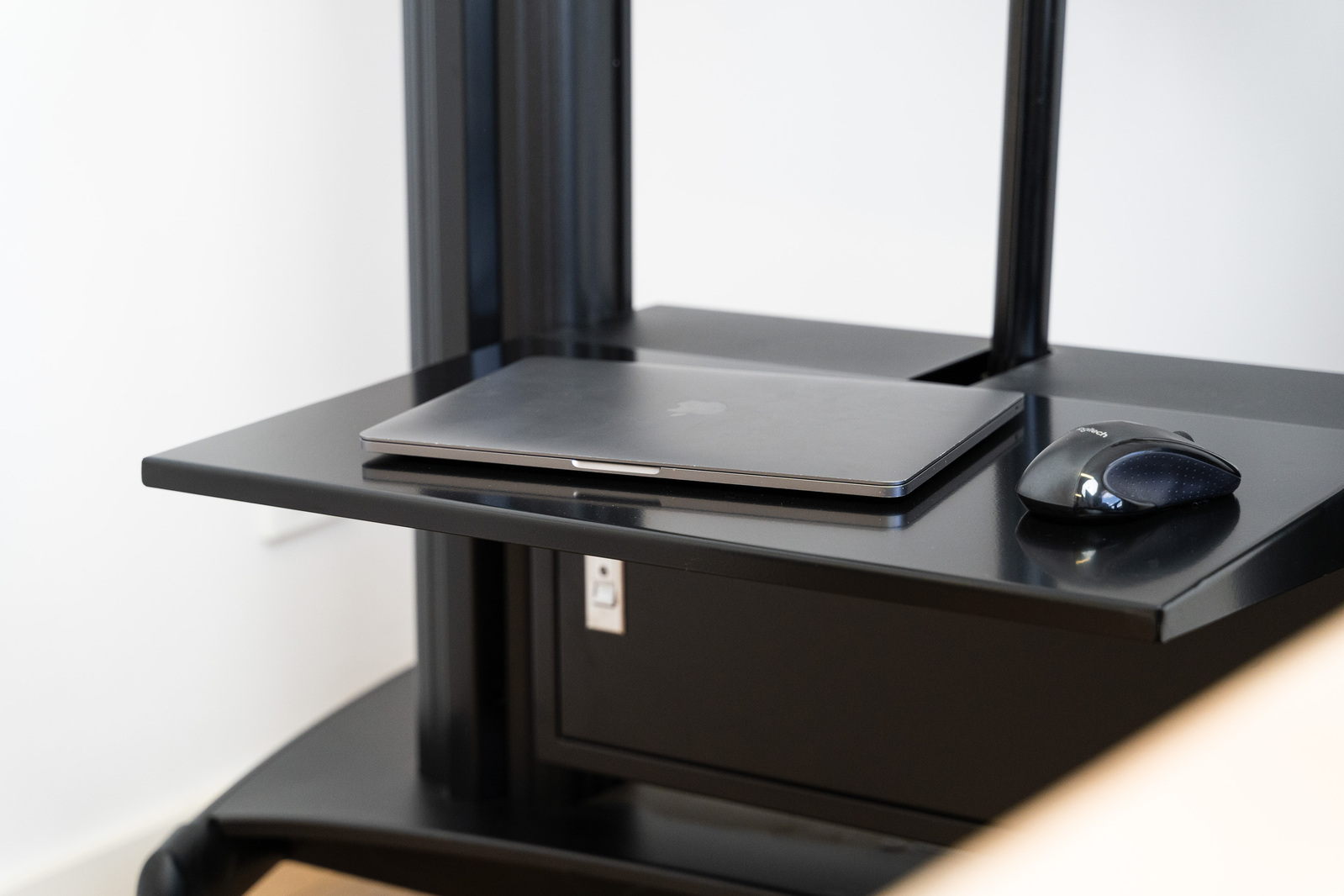

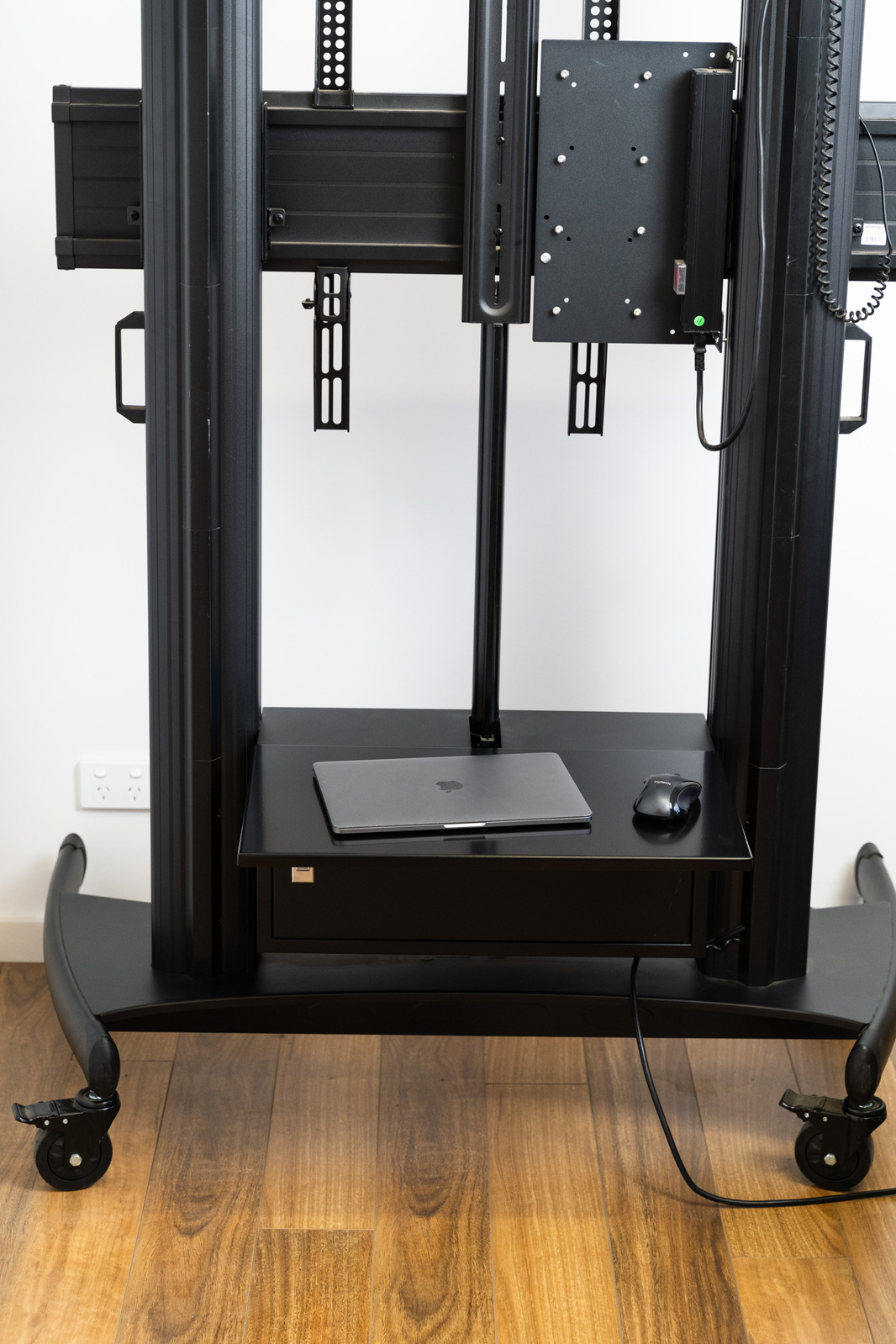

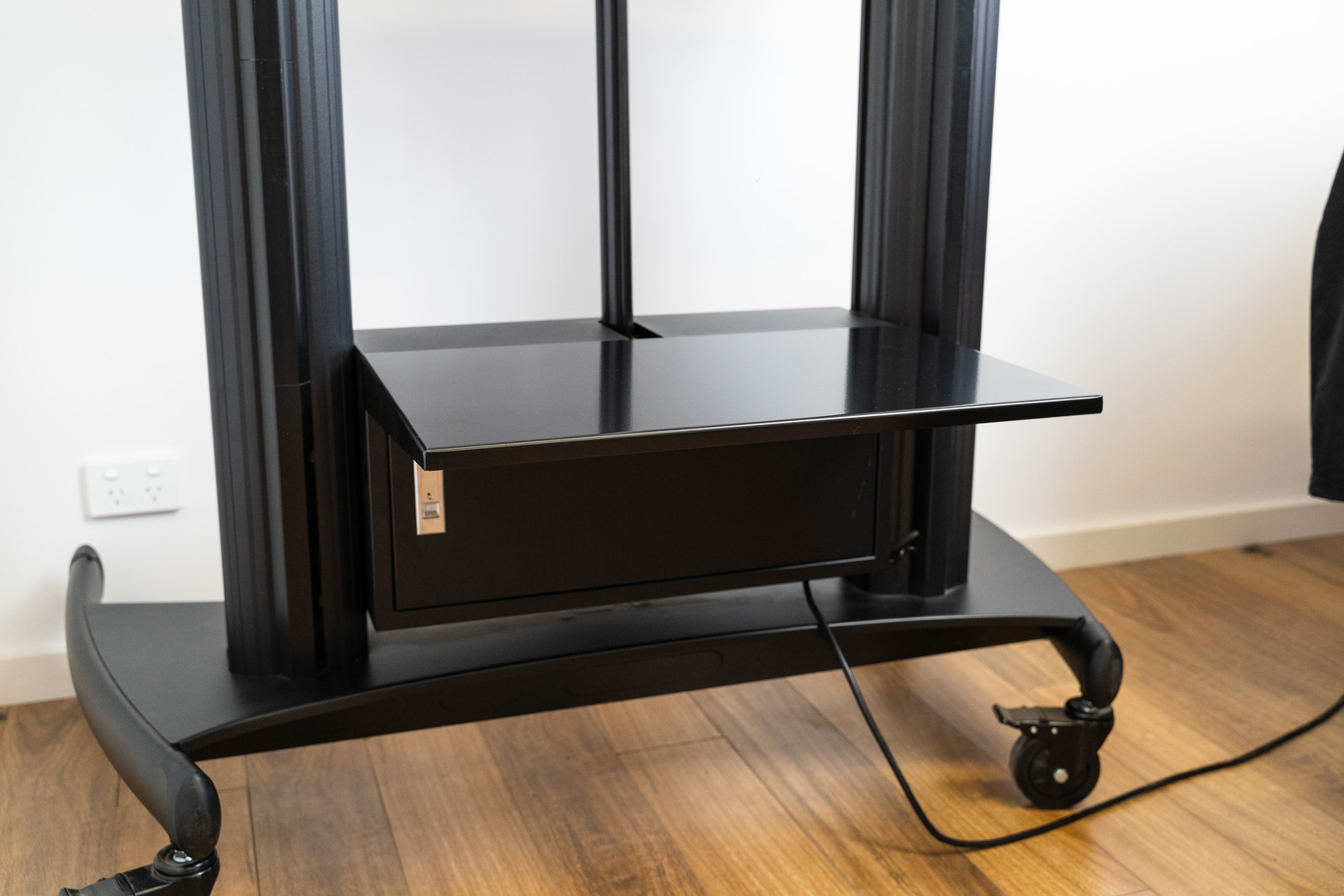

The shelf unit can be installed onto the back or the front of the TW-100 actuator box as required.

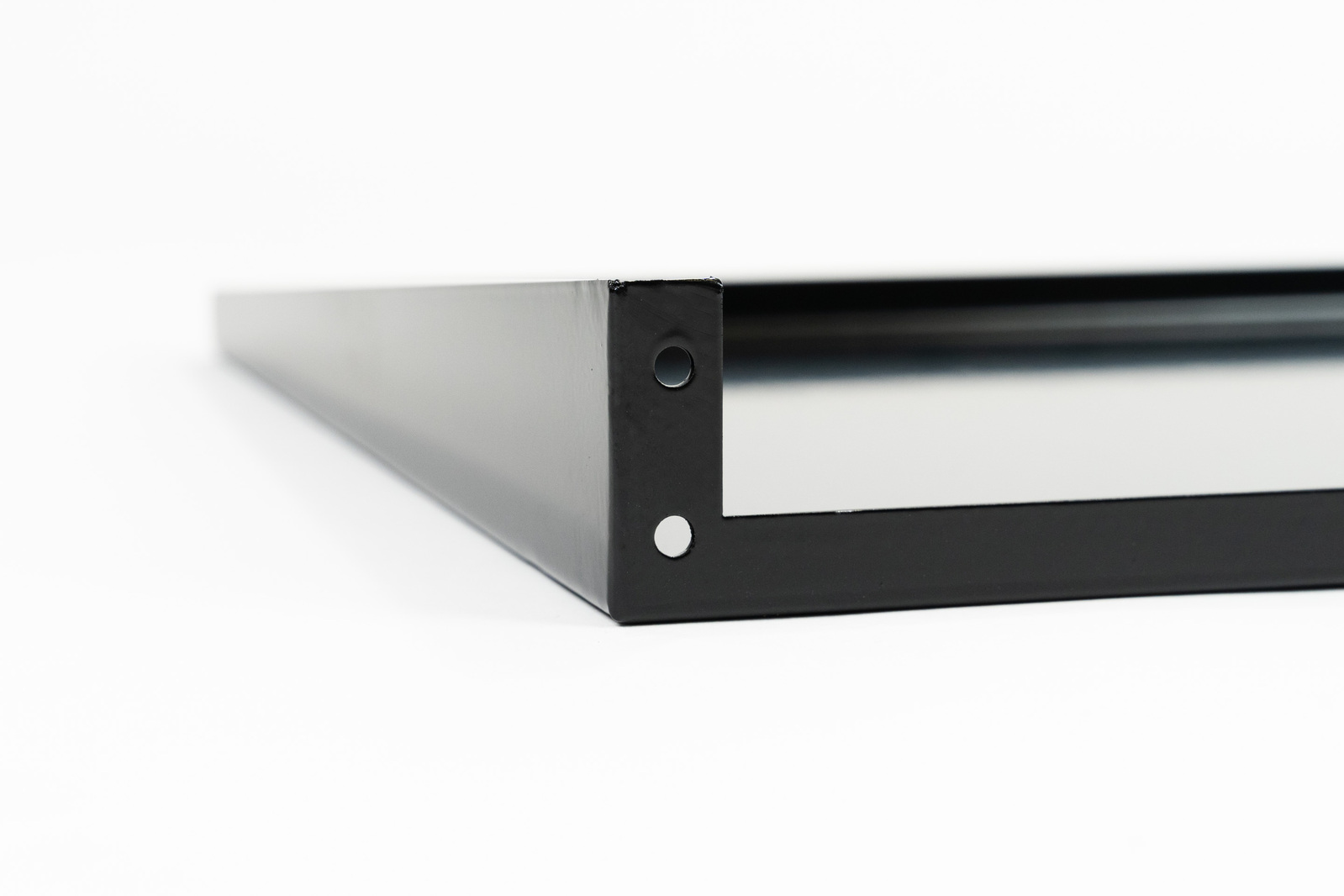

Using the shelf as a template, mark and drill the 4 holes to attach the shelf using a 6mm drill bit

For installing on the door side, we suggest removing the door by pulling down on the spring-loaded latch to simplify access.

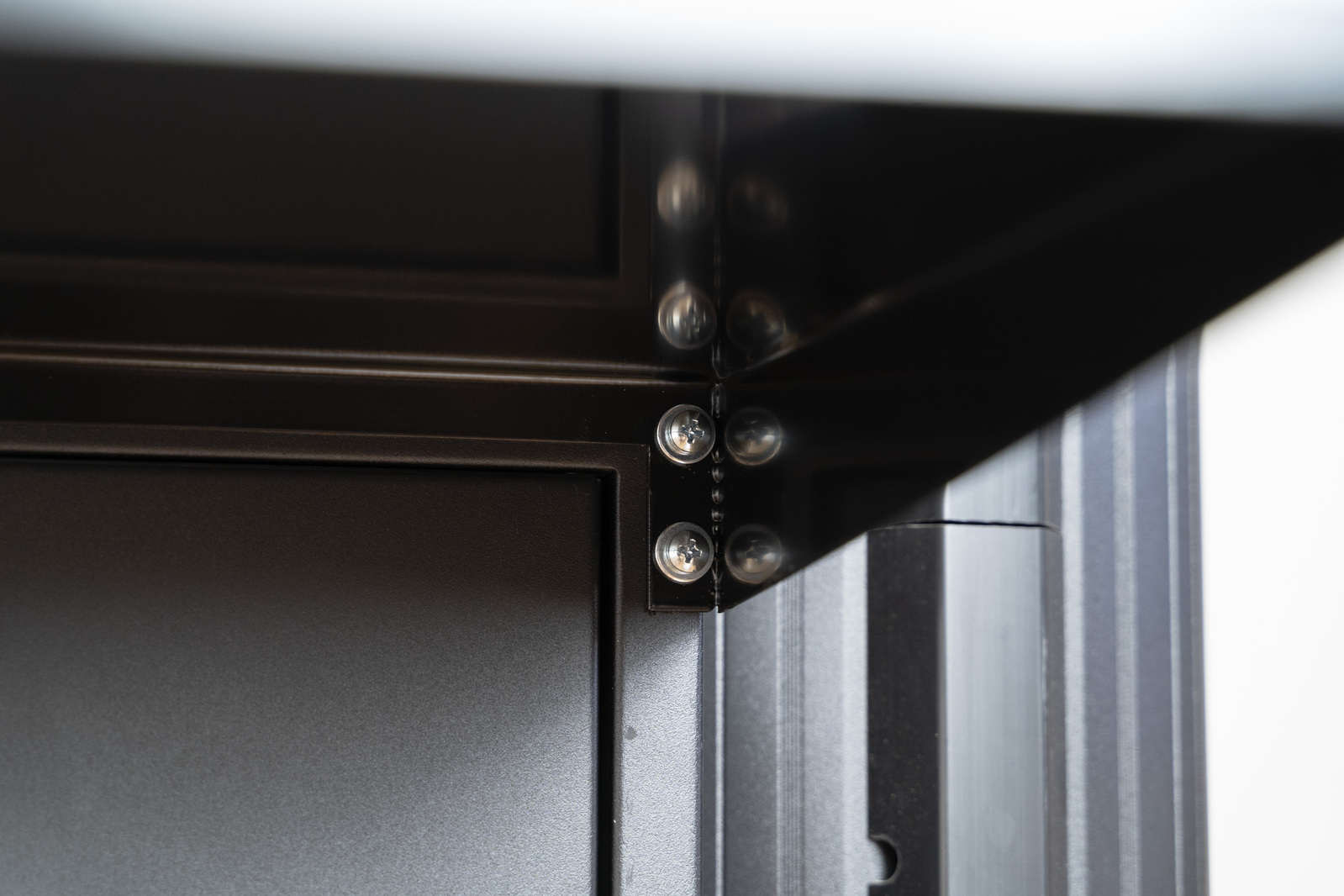

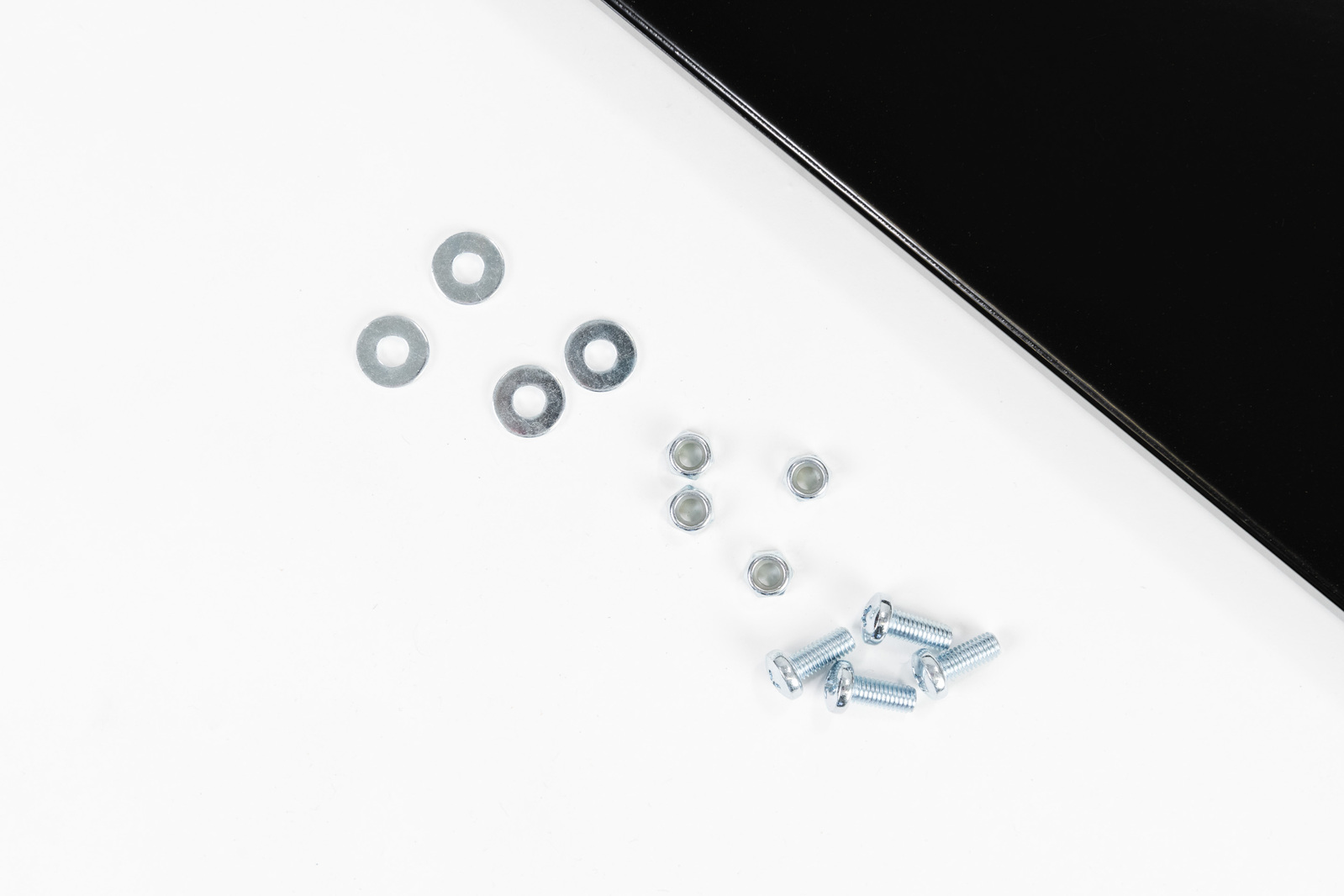

Install the shelf using the screws, washers and nyloc nuts provided.

Insert all 4 screws and start the washers and nylocs on before tightening. Once tightened, the shelf is ready for use.

Re-install the door if previously removed.


SKU TW-100Shelf
Barcode # 0735850719375
Brand MounTech
Shipping Weight 3.0000kg
Shipping Width 0.440m
Shipping Height 0.090m
Shipping Length 0.580m
Shipping Cubic 0.022968000m3
