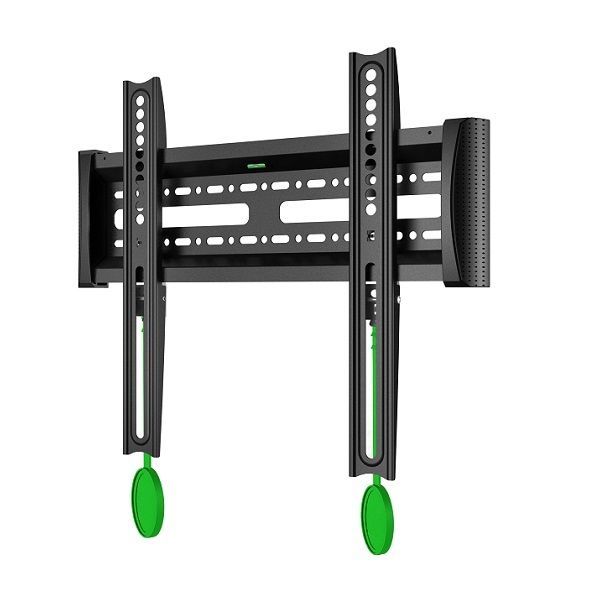

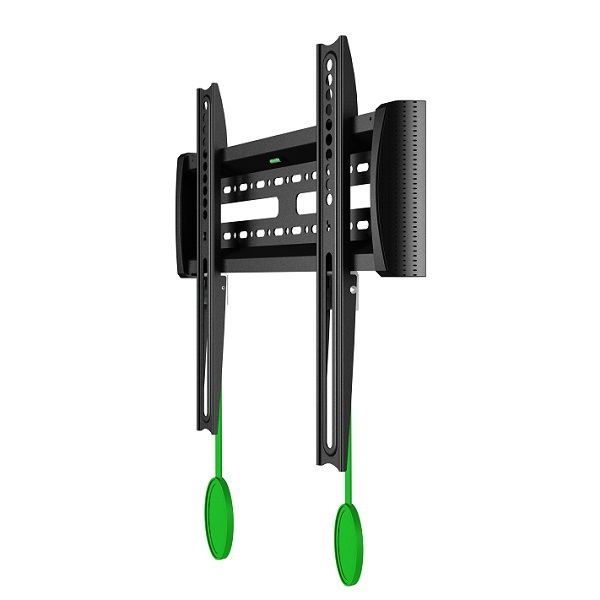

Model: NBC2-F
Fits: Most 32"-55" flat panel LED/LCD TVs.

The NBC2-F fixed mount is a popular design for consumers wishing to easily install their TV at home by themselves. With a sleek, high-quality powder coated finish, this unit allows for quick installation of an LCD/LED display onto the wall plate. The screen can also be adjusted within the wall plate freely to find an optimal horizontal viewing angle.
This low profile design holds a flat panel TV close to the wall, only protruding by 29mm(1.2”). Easy and quick installation and relocation make it convenient to move your TV to a different position, saving significantly on time.
A unique auto-lock and unlock design allows a single person to install and disassemble their TV very easily. Simply hold the adaptors and hook onto the wall plate until it clicks on. Adaptors will engage and lock the screen onto the wall plate automatically. To remove your TV, simply pull the adaptor straps downward to disengage clips and hold it up. That’s it, no hand tools required so use is safe, easy and convenient.


  • Sleek, high-quality surface powder coated finish.
  • You can slide your screen within the wall plate freely to suite a desired horizontal viewing angle.
  • This low profile design holds your flat panel TV close to the wall, only protruding 29mm(1.2”).
  • Easy and quick installation and relocation makes movement of your TV convenient.
  • Saves significantly on installation time compared to other mounting systems.
  • A single person could install or dismount their TV easily.​

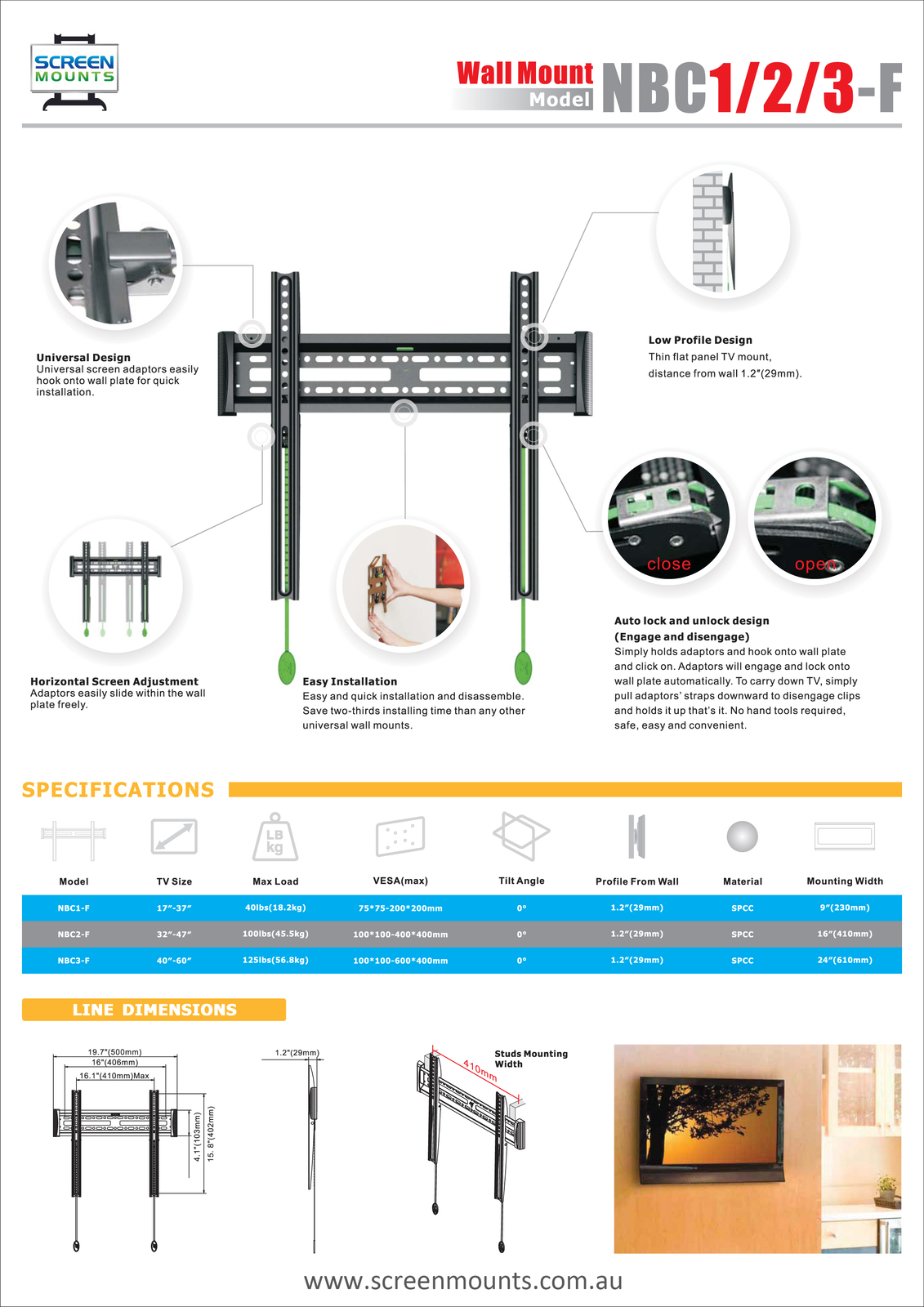

NBC2-F Specifications

  • Flat panel fixed mount.
  • Fits most 32"- 55" flat panel displays.
  • VESA compliance: 75x75, 100x100, 200x100, 200x200, 400x200, 400x400mm.
  • Tilt: 0°.
  • Load capacity: 45.5kg.
  • Material: SPCC with coating finished.
  • Surface treatment: Powder painting coated finish.
  • Colour: Black.


Barcode # 6943223103438
Brand North Bayou
Shipping Weight 1.7000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.520m
Shipping Cubic 0.003120000m3
